ATS 110.75

ATS 110.75

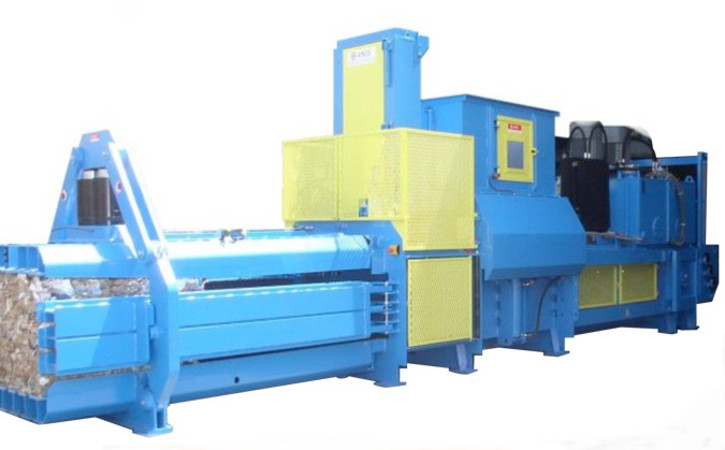

ATS 110-75-new



Ideally suited to Distribution and Warehousing applications.
Cardboard, boxes, loose or pre-baled.

This type of baler is designed for baling waste paper, smaller cardboard packaging, plastics, MSW etc.

  • Feeding can be controlled by a photocells in the hopper.
  • Bale length is controlled by the length control wheel or by No. of strokes.
  • Bales can be tied either in 4x horizontal or 4x vertical direction.
  • Press chamber is made of wear-resistant sheet metal.
  • This is shearing baler can be equipped with two side flaps help baling paper, PET, etc.
  • There is a choice of single material control system or multi-material (up to 20) including proportional pressure control.
    Operator just needs to choose the adequate pre-set programme.

Advantages:- High speed and small space required, Baler with high shearing capacity.







Technical specifications ATS 110.75

Press force Tonnes Max. 142 Max. 115 Max. 91 Max. 74 Max. 58 Max. 45
Specific pressure kg/cm2 17.2 14 11 8.9 7.1 5.4
Power kW 90 / 60 90 / 45 60 / 45 60 / 30 45 / 22 30 / 22
Bale size (WxH)

(Length)

cm 110 x 7

50 - 220

110 x 75

50 - 220

110 x 75

50 - 220

110 x 75

50 - 220

110 x 75

50 - 220

110 x 75

50 - 220

Feed opening cm 160 x 104 160 x 104 160 x 104 160 x 104 160 x 104 160 x 104
Cycle time s 13 / 21 11 / 21 13 / 17 11 / 22 11 / 26 13 / 21
Capacity 50 kg/m3 t/h 10 / 6.5 9.5 / 6 9.5 / 6 11 / 5.5 10.5 / 5.5 9 / 5.5
Auto-tier   4x horizont.
(4x vertical)
4x horizont.
(4x vertical)
4x horizont.
(4x vertical)
4x horizont.
(4x vertical)
4x horizont.
(4x vertical)
4x horizont.
(4x vertical)

Technical Sketch

ats110-75-technicalSketch_croped
